HL125KG

产品说明:

Functions and Fields of HHXGHL series Electric Chain Hoist
Highly efficient energy-saving hoist motor with double speed(fast/slow);
Reliable electro-magnetic brake unit with low power consumption;
High-strength and light-weight aluminum frame and superstrong
Surface-hardened load sheave with wear resisting;
Over lifing and over lowering limit switch instantly stops the hoist
When over liftig or over lowering;
Over-heat motor protector and inner electric control PCB unit willrotect the motor or operator from damage;
- The electric chain hoist has lighter weight;
- Completely lubrication and cooling;
- Easy operation and maintenance.

技术数据：

型号Model		HL125kg-1	HL250kg-2
额定起升重量Rated CapacityKg		125	250
试测载荷Testing Load Kg		160	320
标准起升高度 Standard Lift Height m		3
提升速度米/分 Lifting Speedm/min	快速 Fast	8	4
	慢速 Stow	2	1
链条行数 Number of Load Chain falls		1	2
电机功率千瓦 Output Power KW	快速 Fast	0.25
	慢速 Stow	0.06
运行因子 Rating Factor	快速 Fast	20
	慢速 Stow	40
起重链条直径×节距 Load Chain dia.×P mm		￠5×15
导线 Cable	电源导线 Power Source	4Core(1.5mm2)
	手电门线 Pushu Button	5Core(1 mm2) 2.5m长

型号 Model	HL125kg-1	HL250kg-2
净重 Net Weight? Kg
最小钩间距 Min. Distance between Hooks	400
尺寸 Dimensions mm
A mm	236
B mm	279
C mm	400
D mm	102.5
E mm	122.5
F mm	25
G mm	36
H mm	18
L mm	3000
Q mm	440

HL320KG-2

型号 Model		HL160kg-1	HL320kg-2
额定起升重量 Rated Capacity Kg		160	320
试测载荷 Testing Load Kg		200	400
标准起升高度 Standard Lift Height??? m		3
提升速度米/分 Lifting Speed?? m/min	快速 Fast	12	6
	慢速 Stow	3	1.5
链条行数?Number of Load Chain falls		1	2
电机功千瓦 Output Power?? KW	快速Fast	0.4
	慢速Stow	0.1
运行因子 Rating Factor	快速 Fast	20
	慢速Stow	40
起重链条直径×节距 Load Chain dia.×P mm		￠5×15
导线 Cable	电源导线 Power Source	4Core(1.5mm2)
	手电门线 Pushu Button	5Core(1 mm2) 2.5m长

型号 Model	HL160kg-1	HL320kg-2
净重 Net Weight? Kg	28	29
最小钩间距 Min. Distance between Hooks	400
尺寸Dimensions mm
A mm	236
B mm	309
C mm	400
D mm	102.5
E mm	122.5
F mm	25
G mm	36
H mm	18
L mm	3000
Q mm	440

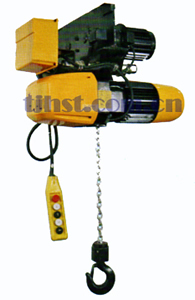

HL500KG

Funcions and Fields of HHXGHL series Electric Chain Hoist Features:
·Offered as hook suspension or with a range of push,geared or dual speed electri trolleys
·Upper and lower limit swirches
·Mains contactors fitted as standard,for increased safety
·Complete electrical protection by low voltage control circuit
·Sealed protection from dust and water to IP55
·Quiet and smooth hoist operation ensusured by the oillubricated planetary gearbox
·Top hook fitted as standard
·The heavy-duty squirrel cage motor features an adjustable spring pressure
·brake,uaranteeing reliable load retention even in the event of a power failure
·All units fctory tested to 125% safe working load
·Single phase 1-230V,50Hz units available,and three phase 3-230V,50Hz units,
three phase 3-380V,50Hz units available

型号Model		HL500kg-1	HL1000kg-2
额定起升重量Rated Capacity Kg		500	1000
试测载荷Testing Load Kg		630	1250
标准起升高度 Standard Lift Height m		3
提升速度米/分 Lifting Speed?? m/min	快速 Fast	8	4
	慢速 Stow	2	1
链条行数 Number of Load Chain falls		1	2
电机功率千瓦 Output Power?? KW	快速 Fast	0.8
	慢速 Stow	0.2
运行因子 Rating Factor	快速 Fast	40
	慢速 Stow	20
起重链条直径×节距? Load Chain dia.×P mm		￠6×18
导线 Cable	电源导线 Power Source	4Core(1.5mm2)
	手电门线 Pushu Button	5Core(1 mm2) 2.5m长

型号 Model	HL500kg-1	HL1000kg-2
净重 Net Weight? Kg	38	44
最小钩间距Min. Distance between Hooks	420
尺寸Dimensions mm
A mm	291
B mm	360
C mm	420
D mm	95
E mm	150.5
F mm	35
G mm	48
H mm	33
L mm	3000
Q mm	480

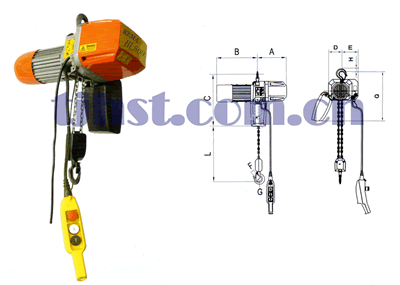

HL500kg-2

型号Model		HL250kg-1	HL500kg-2
额定起升重量Rated Capacity Kg		250	500
试测载荷Testing Load Kg		320	625
标准起升高度 Standard Lift Height m		3
提升速度米/分 Lifting Speed?? m/min	快速 Fast	8	4
	慢速 Stow	2	1
链条行数 Number of Load Chain falls		1	2
电机功率千瓦 Output Power?? KW	快速Fast	0.4
	慢速Stow	0.1
运行因子 Rating Factor	快速Fast	20
	慢速Stow	40
起重链条直径×节距? Load Chain dia.×P mm		￠5×15
导线 Cable	电源导线 Power Source	4Core(1.5mm2)
	手电门线 Pushu Button	5Core(1 mm2) 2.5m长

型号Model	HL250kg-1	HL500kg-2
净重Net Weight Kg	30	31
最小钩间距Min. Distance between Hooks	400
尺寸Dimensions mm
A mm	236
B mm	309
C mm	400
D mm	102.5
E mm	122.5
F mm	25
G mm	36
H mm	18
L mm	3000
Q mm	440

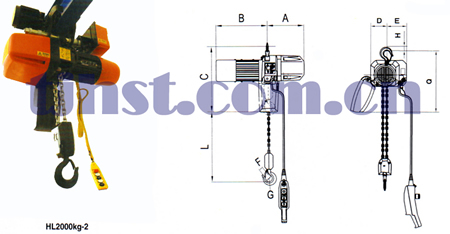

HL2000kg

型号 Model		HL1000kg-1	HL2000kg-2
额定起升重量 Rated Capacity Kg		1000	2000
试测载荷 Testing Load Kg		1250	2500
标准起升高度 Standard Lift Height??? m		3
提升速度米/分 Lifting Speed?? m/min	快速 Fast	8	4
	慢速Stow	2	1
链条行数 Number of Load Chain falls		1	2
电机功率千瓦 Output Power KW	快速Fast	1.6
	慢速Stow	0.4
运行因子 Rating Factor	快速Fast	20
	慢速Stow	40
起重链条直径×节距? Load Chain dia.×P mm		￠8×24
导线 Cable	电源导线 Power Source	4Core(1.5mm2)
	手电门线 Pushu Button	5Core(1 mm2) 2.5m长

型号 Model	HL1000kg-1	HL2000kg-2
净重 Net Weight?Kg	55	58
最小钩间距 Min. Distance between Hooks	650
尺寸 Dimensions mm
A mm	430
B mm	373
C mm	430
D mm	130
E mm	148
F mm	40
G mm	50
H mm	31
L mm	3000
Q mm	500
