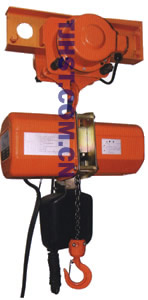

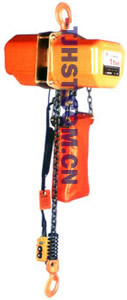

TOYO电动葫芦
产品说明:
⒈ Compact and high effcient motor:
Dc brake system asbestos,consumption of electricity reduced efficiently.
⒉ Hoist body:
Pressing steel structure,high strength body,light and compact.
⒊ Most tensile safety hooks:
Both the top and bottom hook made of high tensile alloy steel,with special
treatment,it guarantee the hook will not break,and will deform gradually
under a sudden extra-load.
⒋ Compact and beaty chain container:
High strenght plastic container have outstanging durability.
⒌ Limit switch devices:
Fitted at both top and bottom ends,switch off power automatically to
prevent load chain from running out.
⒍ Phase error relay:
A specially designed surrent-post prevents motor from running at
incorrect wire connection.
技术数据：
Model |
HHXG-05A |
HHXG-10A |
HHXG-20A |
HHXG-30A |
Capacity tons |
0.5 |
1.0 |
2.0 |
3.0 |
Standard lift m |
3 |
3 |
3 |
3 |
Running test load kn |
6.3 |
12.5 |
25 |
37.5 |
Motor power kw |
0.8 |
1.1 |
1.1 |
1.1 |
No.of columns of load chain |
1 |
1 |
2 |
3 |
Load chain diameter mm |
7.1 |
7.1 |
7.1 |
7.1 |
Lift speed m/min |
5.80 |
4.30 |
2.15 |
1.43 |
Dimensions
(mm) |
A |
150 |
150 |
173 |
186 |
B |
112 |
112 |
90 |
77 |
C |
250 |
250 |
250 |
250 |
D |
245 |
245 |
245 |
245 |
K |
27 |
30 |
38 |
56 |
? |
45 |
50 |
65 |
70 |
F |
85 |
105 |
136 |
164 |
J |
17 |
26 |
36 |
45 |
P |
14 |
15 |
22 |
30 |
L |
550 |
590 |
770 |
775 |
Net weight kg |
44 |
46 |
60 |
68 |
|
