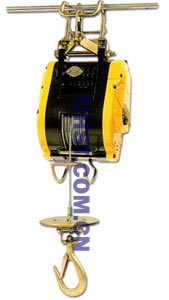

悬挂式微型电动葫芦
产品说明:
活动自如的轻量和小盒设计。
当拉力绳接触限动臂,自动停止提升。
当绳子反旋时,感应臂制动电机。
静动公用的负荷活动间设置。
家用电源上的操作。
轻便的灯芯插座。
带有安全勾锁的360度万能连接勾座.
Lightweight&compact design allow mounting convnient.
When rope touches the limit arm,stopped automatically.
Induetion-motor stops when the rope is reverse winding.
It operates on household power source.
Plug-in cords allow portability with easy.
360°universal joint saddle hook with safety latch
技术数据:
产品型号MODEL
|
额定载荷Rated load(kg)
|
额定电压Rated volt(v;50/60Hz)
|
输入功率Input power(w)
|
钢丝绳直径Cable diameter(mm)
|
起升速度Lifting speed(m/min)
|
起升高度Lifting height(m)
|
毛重/净重G.W/N.W(kg)
|
包装尺寸Packing size(cm)
|
HXS-100F |
100 |
220,230,
240,110 |
280 |
?3.8 |
15 |
20 |
30/28 |
42.5×37.5×37 |
HXS-150F |
150 |
780 |
?3.8 |
15 |
20 |
30/28 |
42.5×37.5×37 |
HXS-200F |
200 |
1050 |
?5.1 |
12 |
20 |
32/30 |
42.5×37.5×37 |
HXS-250F |
250 |
1200 |
?5.1 |
12 |
20 |
32/30 |
42.5×37.5×37 |
|
