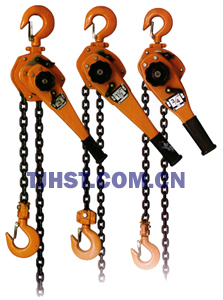

vital手扳葫芦
产品说明:
技术数据：
型號 Model Number |
NR2-03 |
NR2-05 |
NR2-08 |
NR2-10 |
NR2-15 |
NR2-30 |
NR2-60 |
NR2-90 |
VR2-08 |
VR2-10 |
VR2-15 |
VR2-30 |
VR2-60 |
載重Capacity(tons) |
1/4 |
1/2 |
3/4 |
1 |
1-1/2 |
3 |
6 |
9 |
3/4 |
1 |
1-1/2 |
3 |
6 |
標準揚程Standard Lift(m) |
1.0 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
淨重Net Weight(Kg) |
1.9 |
3.5 |
6.0 |
7.2 |
9.8 |
16.6 |
27.0 |
47.3 |
6.9 |
7.1 |
9.7 |
16.3 |
26.7 |
鉤間最少距離
Min. Distance between Hooks(mm) |
230
|
260
|
295
|
325
|
350
|
425
|
565
|
680
|
295
|
310
|
335
|
405
|
550
|
手拉力量
Pull Required to Lift Full Load(Kg) |
30
|
34
|
21
|
23
|
27
|
38
|
39
|
40
|
15
|
20
|
18
|
38
|
39
|
鏈厚度
Chain thickness(mm) |
4.0 |
5.0 |
5.6 |
6.3 |
7.1 |
9.0 |
9.0 |
9.0 |
6.3 |
6.3 |
7.1 |
9.0 |
9.0 |
尺寸
Dimension |
A(mm) |
85 |
110 |
146 |
146 |
161 |
191 |
191 |
191 |
148 |
148 |
163 |
181 |
244 |
B(mm) |
65 |
82 |
119 |
126 |
146 |
180 |
243 |
318 |
128 |
128 |
148 |
181 |
244 |
C(mm) |
230 |
260 |
295 |
325 |
350 |
425 |
565 |
680 |
295 |
310 |
335 |
405 |
550 |
D(mm) |
150 |
267 |
256 |
256 |
368 |
368 |
368 |
368 |
256 |
256 |
368 |
368 |
368 |
G(mm) |
24 |
27 |
27 |
30 |
34 |
43 |
47 |
67 |
27 |
30 |
34 |
43 |
47 |
|
|
|
|
|
