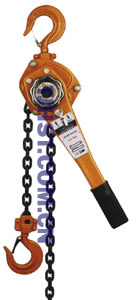

HSH-A610型手扳葫芦
产品说明:
- 安全可靠，经久耐用
- 性能好，使用简便，维修方便
- 体积小携带方便
- 工作效率高、手扳力轻
- 结构合理，运行平稳，外形美观
- Safe, reliable, durable
- Good performance, easy to use, easy to maintain and repair
- Small easy to carry
- High efficiency light hoist edge
- Structurally sound, smooth operation, stylish
技术数据：
Model |
HSH-0.75A |
HSH-1.5A |
HSH-3A |
HSH-6A |
HSH-9A |
Capacity tons |
0.75 |
1.5 |
3 |
6 |
9 |
Standard lift m |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Running test
load Kn |
11.0 |
22.5 |
37.5 |
75.0 |
112.5 |
Effort required to
lift rated load N |
140 |
240 |
320 |
340 |
360 |
Strands of load
chain |
1 |
1 |
1 |
2 |
3 |
Load chain diameter
mm |
6 |
8 |
10 |
10 |
10 |
Dimensions
(mm) |
A |
155 |
180 |
215 |
215 |
215 |
B |
95 |
105 |
130 |
130 |
130 |
C |
135 |
155 |
200 |
200 |
330 |
D |
37 |
45 |
50 |
64 |
85 |
H |
320 |
380 |
480 |
600 |
700 |
L |
285 |
370 |
410 |
410 |
410 |
K |
30 |
36 |
40 |
50 |
58 |
Net eight kg |
7.7 |
11.8 |
21 |
32 |
47 |
Packing measurement cm |
38×14×16.5 |
46.5×15.5×19 |
51×19×21.5 |
53×22×21.5 |
82×32×21.5 |
Extra weight per
metre of extra lift kg |
0.8 |
1.4 |
2.2 |
4.4 |
6.6 |

JHSS钢丝绳手扳葫芦
产品说明:
●便携式拉紧器是一部通用工具
●具有牵引、提升、降落、拉紧等多项功能，保证间隔物品的安全
●高强度铝质外壳
●自重轻
●磨损小，表面积大且前后有两个夹子
●低维修
●前后拉杆保证牵引力一直是在中心线上
●易于更换超载牵引器
技术数据：
型号Model
项目Item |
JHSS-800 |
JHSS-1600 |
JHSS-3200 |
额定起重(kg)
Rated capacity |
800 |
1600 |
3200 |
额载前进手扳力（N）
Rated forward handpower |
343 |
441 |
441 |
额定前进行程（mm）
Rated forward travel |
≥52 |
≥55 |
≥28 |
钢绳公称直径（mm）
Rope diameter |
803 |
11 |
16 |
钢绳安全系数（倍）
Wire rope safety factor
load capacity |
5 |
5 |
5 |
整机静戴安全系数
Safety factor & static
Load capacity |
5 |
5 |
5 |
最大动载荷
Max traveling load |
1200 |
2400 |
4000 |
机体重量
Net weight |
6 |
11 |
22 |
|
|
|
|
|
